Quantitative benchtop NMR

Quantification using any analytical method requires calibrating an instrumental response with a known reference, and then calculating the concentration of an unknown sample from the measured instrument response. One advantage of NMR compared to other analytical methods is that the signal response is linear, resulting the NMR signal intensity being proportional to the number of nuclei.

Sample concentrations and purities can be easily measured from known peaks once the proportionality constant is calibrated using a reference of known concentration and purity. Such measurement methods are known as quantitative NMR, or qNMR for short.

The qNMR method has been around for over 20 years. Due to the high demands in accuracy and precision (about 1%), this method has so far been limited to high field instruments. This post shows the extraordinary performance in resolution and stability enables the Spinsolve benchtop NMR spectrometer to be used to verify the purity of a commercial drug sample.

One method of calibrating the NMR spectrometer is with an internal standard as a reference. Both the sample and the reference are weighed out and co-dissolved into a single solution. The integral of the peak associated with the reference sample is used to calibrate the instrument response. One or more peaks associated with the sample of interest are used to determine the sample concentration or purity. The purity can be calculated with the following equation:

qNMREquation1
Where:

  • M =Molecular weight
  • I = Integral
  • N = Normalisation factor (the number of nuclei represented by the peak)
  • m = Mass
  • P = Purity
  • Sample = designates the sample of interest
  • Ref = Reference Standard

The internal standard sample needs to be of known (preferably high) purity and highly soluble in the chosen solvent, but not react with it. In order to be able to accurately weigh it, the standard also should be non-volatile and non-hygroscopic. It should only have few signals, which are well separated from the analyte signals for minimum peak overlap. Suppliers for NMR chemicals nowadays can provide certified qNMR reference samples for different solvent/analyte combinations.

As an example for qNMR we checked the purity of a commercial lidocaine sample (>98% according to the manufacturer’s label). The measurement was performed on a 43 MHz Proton Spinsolve benchtop NMR spectrometer. Maleic acid was chosen as an internal reference sample, as it has a single peak at 6.4 ppm, which is well separated from the analyte peaks. The aromatic (Aro) and methyl (Me) peaks of lidocaine were chosen for quantification. The aromatic peak is an unresolved multiplet containing a total of three protons positioned at about 7 ppm. The methyl peak is a triplet representing six protons and located at 1 ppm. The spectrum of the sample, along with the assigned peak integrals for the purity calculation, is shown below.

Proton spectrum of lidocaine with maleic acid as internal reference

Proton spectrum of lidocaine with maleic acid as internal reference

Six independent samples were created by co-dissolving lidocaine and maleic acid in DMSO-d6 at a concentration of approximately 50 mg/mL. A mean purity of 99.0 ±0.7 % was measured from the six samples, confirming the manufacturer’s purity specification of >98%.

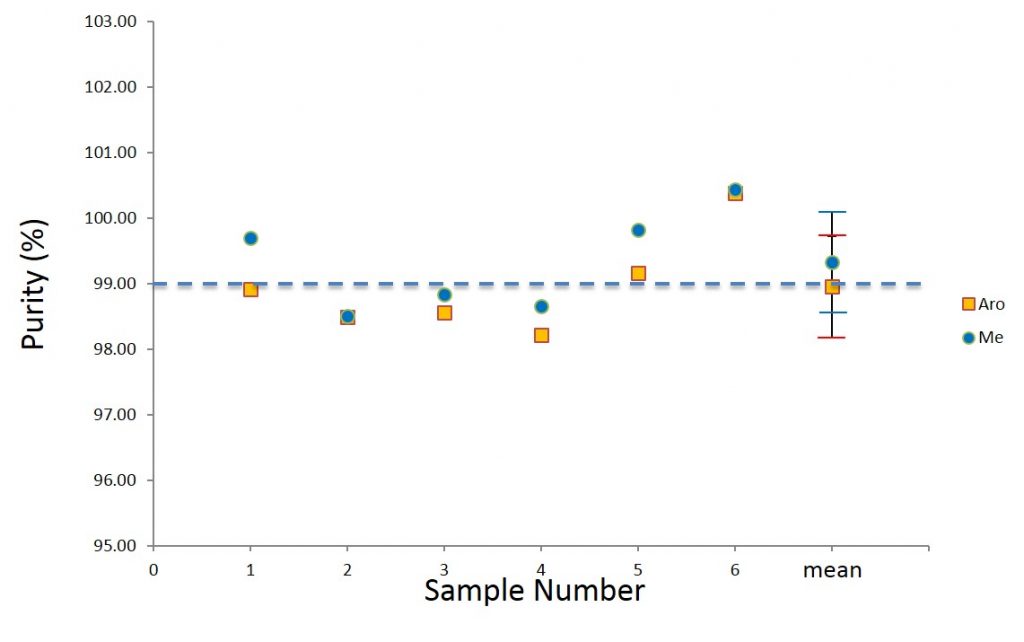

Measured purity of lidocaine from aromatic and methyl peak.

Measured purity of lidocaine from aromatic and methyl peak.
